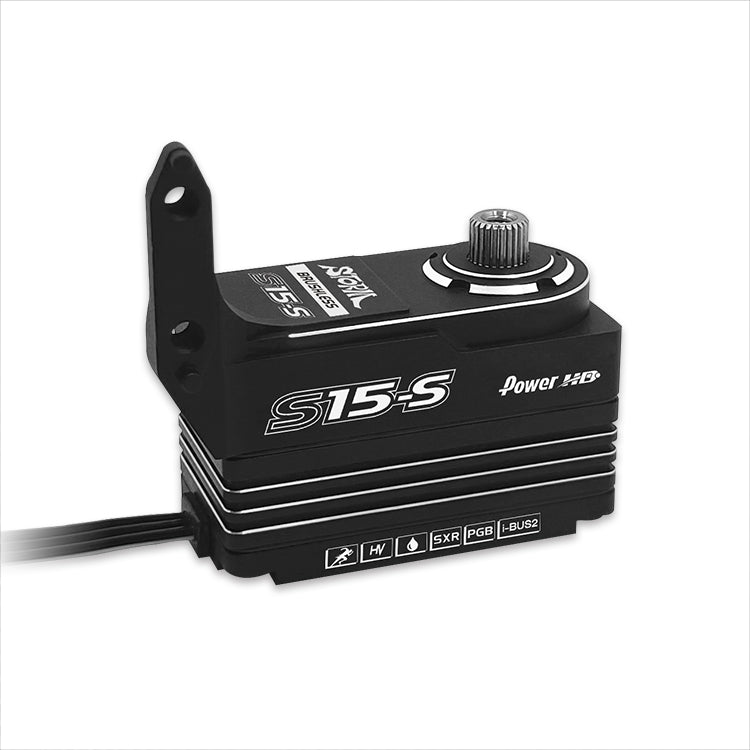

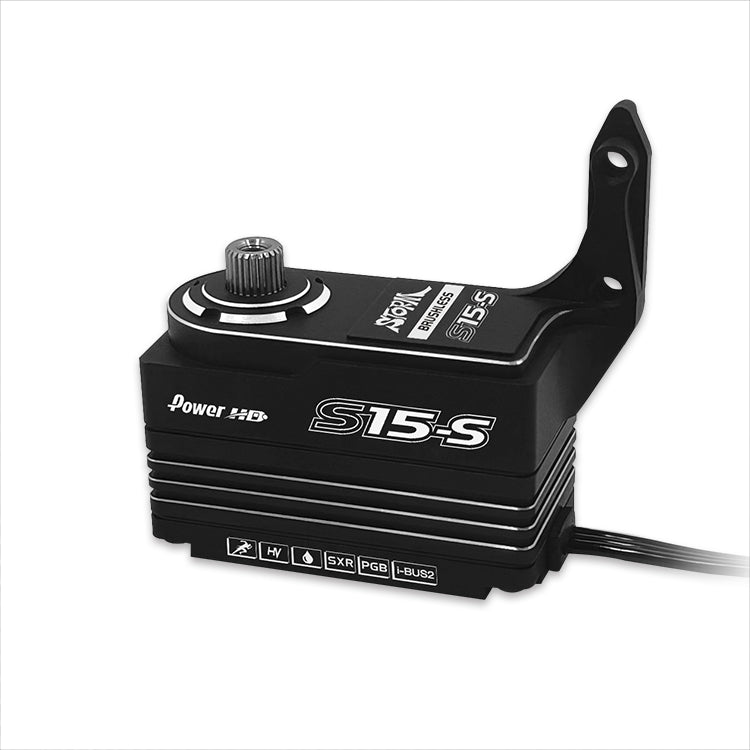

Power HD S15-S Low Profile Brushless Servo

Introducing the new direct fit Power HD S15-S 1/10th Brushless Servo for the Mi9, FT9 and Mi10.
Very popular Power HD S15 servo is now available as a "direct mount version" for the Schumacher Mi9, Mi10 touring anf FT9 FWD cars. This servo has a servo holder integrated with the servo housing and can be mounted directly in the vehicle chassis (without kit servo holder).

Direct mounting servo not only gives a cleaner look and reduce overall weight, but also reduce steering flex and gives more direct and faster response.

This servo is for high level competition, boasting a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torque requirements of modern touring cars.

Used by Michal Orlowski during his successful 2024 touring car campaign.

*Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions

*Support the high speed mode of:

• Noble NB4 Pro modes: NOR / SR / SFR
• Futaba modes: NOR / SR / UR
• SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63

Required servo horn: 25 teeth (not included)

Technical Specification:

• Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
• Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
• Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
• Speed (6.0V): 0.072 sec
• Speed (7.4V): 0.060 sec
• Speed (8.4V): 0.050 sec
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 56.5 g (2.0 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：Brushless Motor

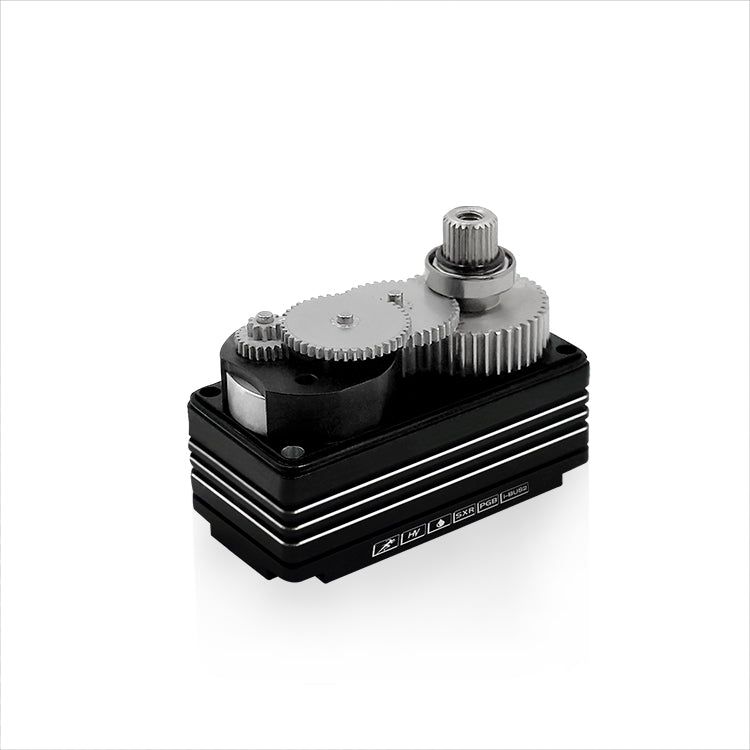

• Gear Type：Titanium & Steel
• Operating Temperature: -20℃~60℃
• Working frequency：1520μs / 333hz\
• Size：41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
