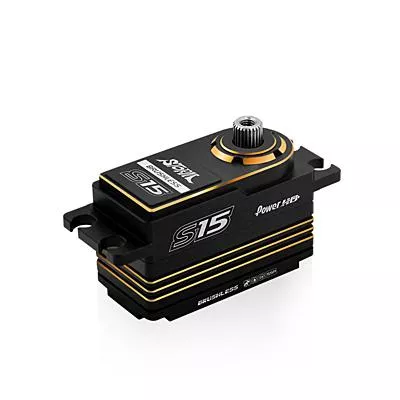

Power HD S15 Low Profile Brushless Servo - Gold

The Power HD S15 has been specially designed for the 1/10 off road and on road racing classes, where overall low car weight is crucial. The servo operate in SSR mode (Super Speed Response) allowing a natural feel and instant feedback on track. The Power HD S15 is the logical further development of the popular Power HD servos R12 and B7. The S15 has a very attractive aluminum housing (optionally with silver, gold or red accents).

Required servo horn: 25 teeth (not included)

Specification:

• Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
• Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
• Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
• Speed: 0.072 sec (6.0V) │ 0.060 sec (7.4V) | Speed: 0.050 sec (8.4V)
• Operating Voltage：0 ~ 8.4 DC Volts
• Weight: 52.0 g (1.83 oz)
• Bearing Type：Ball Bearing x 2
• Motor Type：Brushless Motor
• Gear Type：Titanium & Steel
• Operating Temperature: -20℃~60℃
• Working frequency：1520μs / 333hz
• Size：0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)
