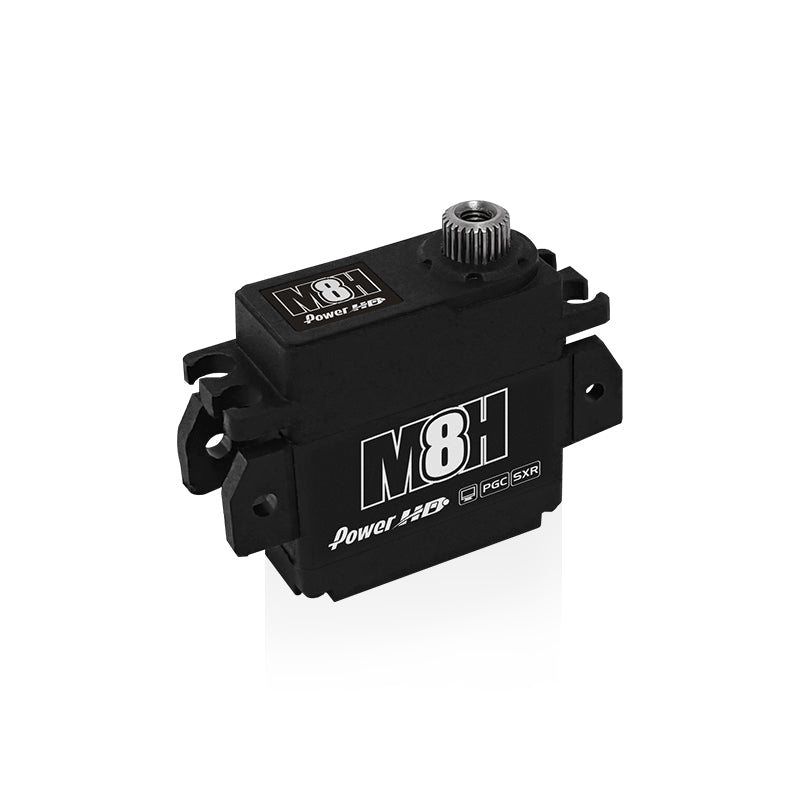

Power HD M8H 1:12 Pan Car Servo

The new Power HD M8H 1:12 Pan Car Servo is a top class servo optimized for 1:12 racing. The M8H servo provides precise handling and spot-on steering in your 1:12 pan car.

*Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

• Noble NB4 Pro modes: NOR / SR / SFR
• Futaba modes: NOR / SR / UR
• SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63

Required servo horn: 25 teeth (not included)

Specification:

• Torque(4.8V): 4.5 kg-cm (62.5 oz/in)
• Torque(6.0V): 6.3 kg-cm (87.5 oz/in)
• Torque(7.4V): 7.5 kg-cm (104.2 oz/in)
• Torque(8.4V): 8.5 kg-cm (118.0 oz/in)
• Speed: 0.110 sec (4.8V) │ 0.085 sec (6.0V)
• Speed: 0.073 sec (7.4V) │ 0.065 sec (8.4V)
• Operating Voltage：8 ~ 8.4 DC Volts
• Weight: 18.0 g (0.63 oz)
• Motor Type：Coreless Motor
• Gear Type：Titanium & Steel
• Size：27.2  x 12.1 x 28.2 mm
           (1.07 x 0.48 x 1.11 in)



Note: fits direct mounting placement in Schumacher Eclipse 5.
