Power HD GTS-7 HV Brushless Servo

Power HD GTS-7 HV Brushless Servo

SKU:PHD-GTS-7

Regular price €128.90 EUR
Regular price Sale price €128.90 EUR
Sale Out of stock
Tax included. Shipping calculated at checkout.

Customers will always checkout in the currency of the store. (EUR)

The new Power HD GTS-7 High Voltage Servo is the most powerful servo from new GTS servos line. Specially designed for 1/5 scale model cars where highest torque is required.
GTS-7 offers amazing torque output – up to 70.0 kg.

 *Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

  • Noble NB4 Pro modes: NOR / SR / SFR
  • Futaba modes: NOR / SR / UR
  • SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63
*four-pole brushless motor

 Required servo horn: 25 teeth (not included)

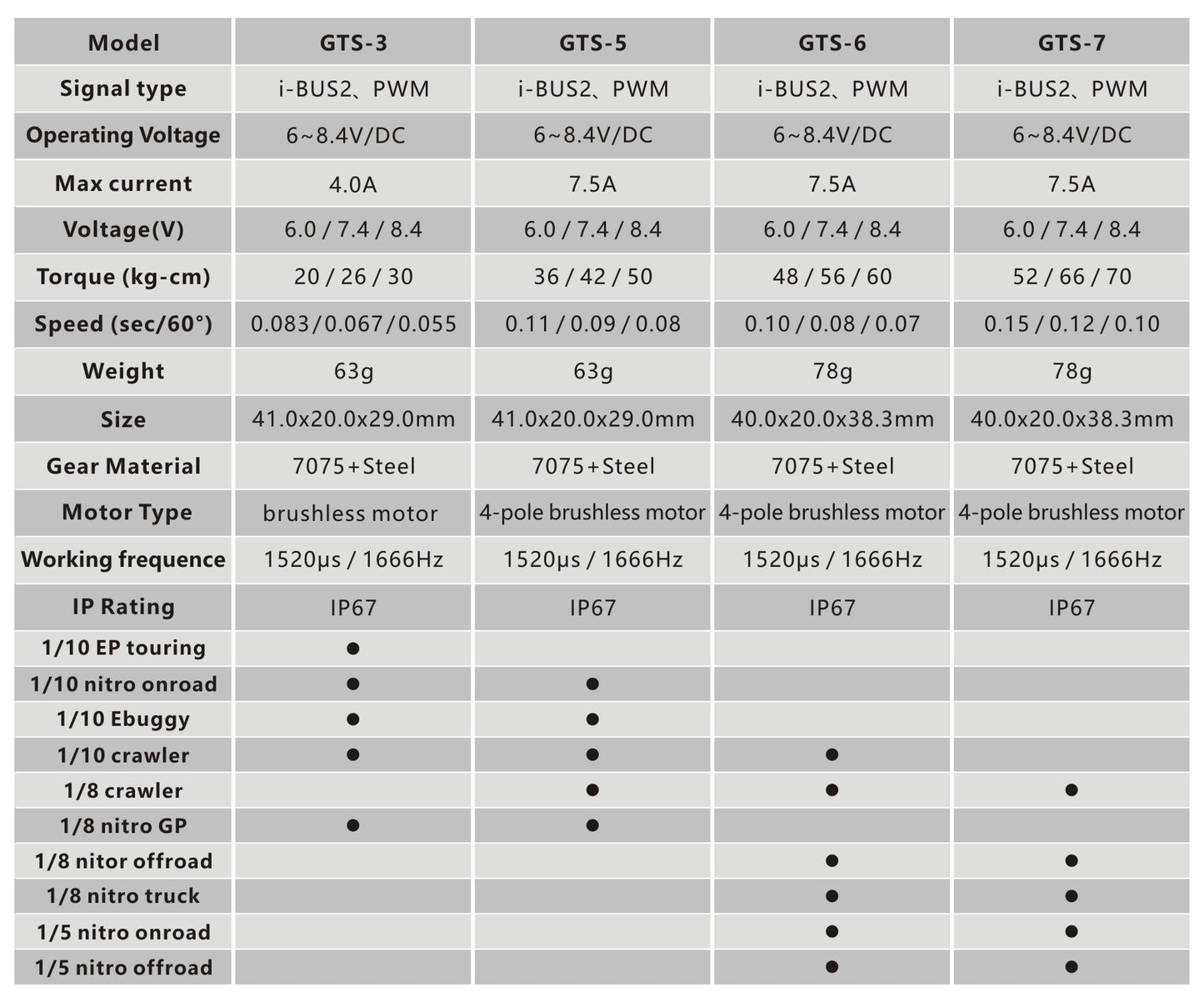

 Specification:

  • Torque(6.0V): 52.0 kg-cm/ (722.1 oz/in)
  • Torque(7.4V): 66.0 kg-cm/ (916.6 oz/in)
  • Torque(8.4V): 70.0 kg-cm/ (972.1 oz/in)
  • Speed: 0.15 sec (6.0V); 0.12 sec (7.4V); 0.10 sec (8.4V)
  • Operating voltage:6.0 - 8.4 DC Volts
  • Weight: 78 g (2.75 oz)
  • Bearing type: Ball Bearing x 2
  • Motor type: Brushless Motor
  • Gear type:7075+Steel
  • Operating temperature: from -20*C to +60*C
  • Working frequency : 1520µs/1666hz
  • Size:40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
  • Max current: 7.5A
