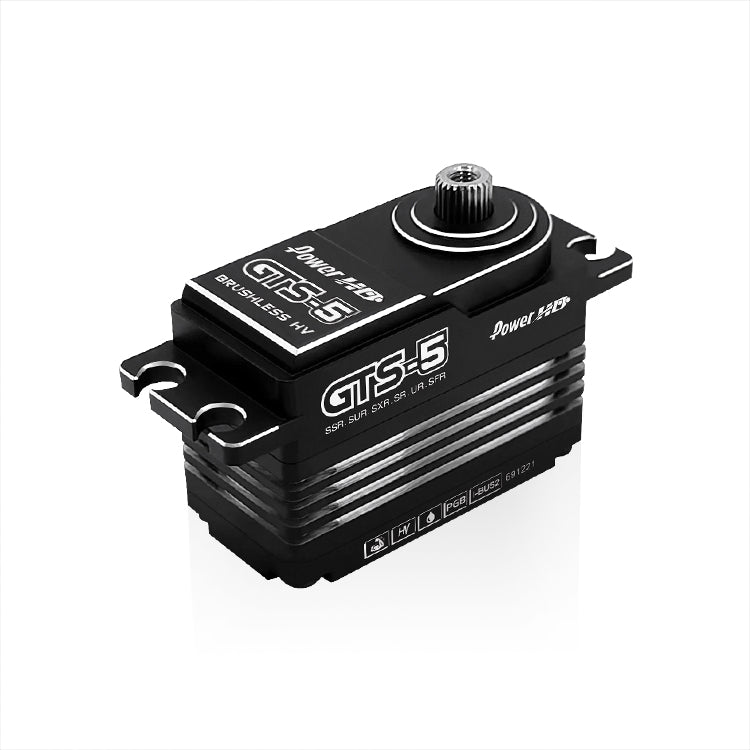

Power HD GTS-5 HV Low Profile Brushless Servo

The new Power HD GTS-5 has been specially designed for the 1/10 off road racing classes where more torque is required. This servo can produce up to 50.0 kg torque.

 *Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

• Noble NB4 Pro modes: NOR / SR / SFR
• Futaba modes: NOR / SR / UR
• SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63
*four-pole brushless motor

 The GTS-5 is the first choice for all who are looking for a particularly fast and strong servo!

 Required servo horn: 25 teeth (not included)

  Specification:

• Torque(6.0V): 36.0 kg-cm/ (499.9 oz/in)
• Torque(7.4V): 42.0 kg-cm/ (583.3 oz/in)
• Torque(8.4V): 50.0 kg-cm/ (694.4 oz/in)
• Speed: 0.11 sec (6.0V); 0.09 sec (7.4V); 0.08 sec (8.4V)
• Operating voltage:6.0 - 8.4 DC Volts
• Weight: 63 g (2.22 oz)
• Bearing type: Ball Bearing x 2
• Motor type: Brushless Motor

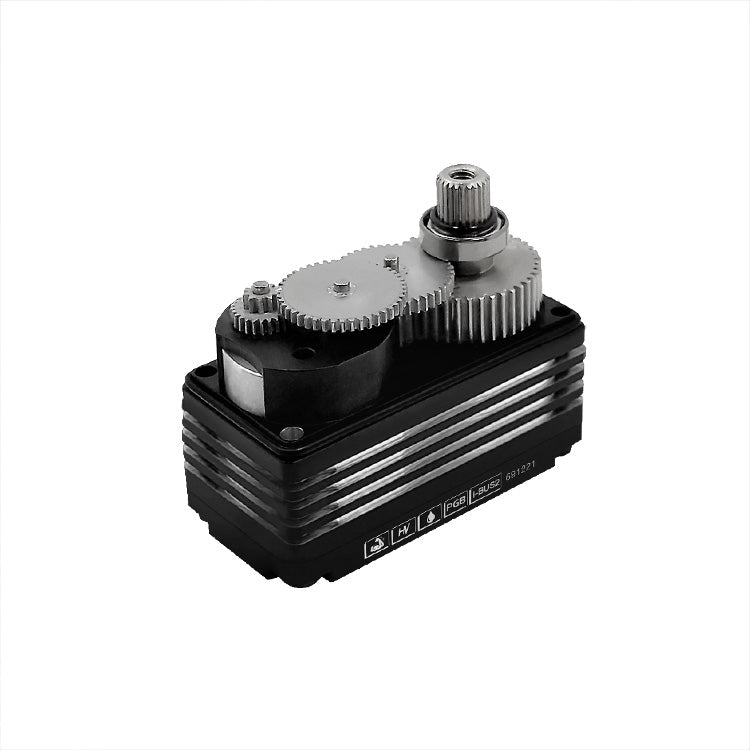

• Gear type:7075+Steel
• Operating temperature: from -20*C to +60*C
• Working frequency : 1520µs/1666hz
• Size:41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
• Max current: 7.5A
