Power HD GTS-5 HV Low Profile Brushless Servo

Power HD GTS-5 HV Low Profile Brushless Servo

PHD-GTS-5

€128.90 EUR
€128.90 EUR
Sale Out of stock
Tax included. Shipping calculated at checkout.

Customers will always checkout in the currency of the store. (EUR)

The new Power HD GTS-5 has been specially designed for the 1/10 off road racing classes where more torque is required. This servo can produce up to 50.0 kg torque.

 *Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

  • Noble NB4 Pro modes: NOR / SR / SFR
  • Futaba modes: NOR / SR / UR
  • SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63
*four-pole brushless motor

 The GTS-5 is the first choice for all who are looking for a particularly fast and strong servo!

 Required servo horn: 25 teeth (not included)

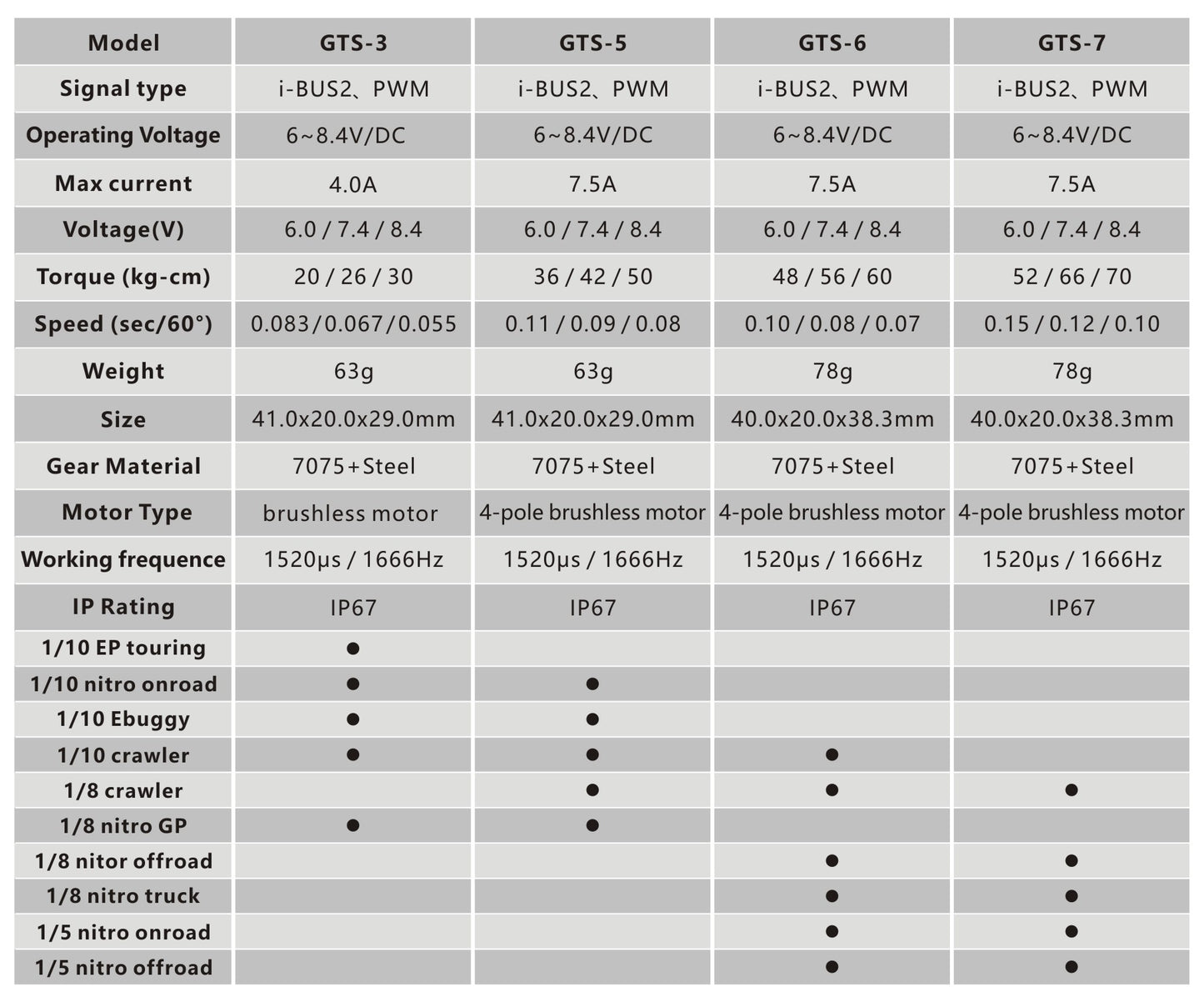

  Specification:

  • Torque(6.0V): 36.0 kg-cm/ (499.9 oz/in)
  • Torque(7.4V): 42.0 kg-cm/ (583.3 oz/in)
  • Torque(8.4V): 50.0 kg-cm/ (694.4 oz/in)
  • Speed: 0.11 sec (6.0V); 0.09 sec (7.4V); 0.08 sec (8.4V)
  • Operating voltage:6.0 - 8.4 DC Volts
  • Weight: 63 g (2.22 oz)
  • Bearing type: Ball Bearing x 2
  • Motor type: Brushless Motor
  • Gear type:7075+Steel
  • Operating temperature: from -20*C to +60*C
  • Working frequency : 1520µs/1666hz
  • Size:41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
  • Max current: 7.5A
