Power HD GTS-3 HV Low Profile Brushless Servo
Power HD GTS-3 HV Low Profile Brushless Servo
SKU:PHD-GTS-3
Regular price
€117.90 EUR
Regular price
Sale price
€117.90 EUR
Unit price
/
per
Customers will always checkout in the currency of the store. (EUR)
The Power HD GTS-3 is the next generation of S15 servo. Has been specially designed for the 1/10 on road racing class, where overall low car weight is crucial.
*Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:
- Noble NB4 Pro modes: NOR / SR / SFR
- Futaba modes: NOR / SR / UR
- SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
Required servo horn: 25 teeth (not included)

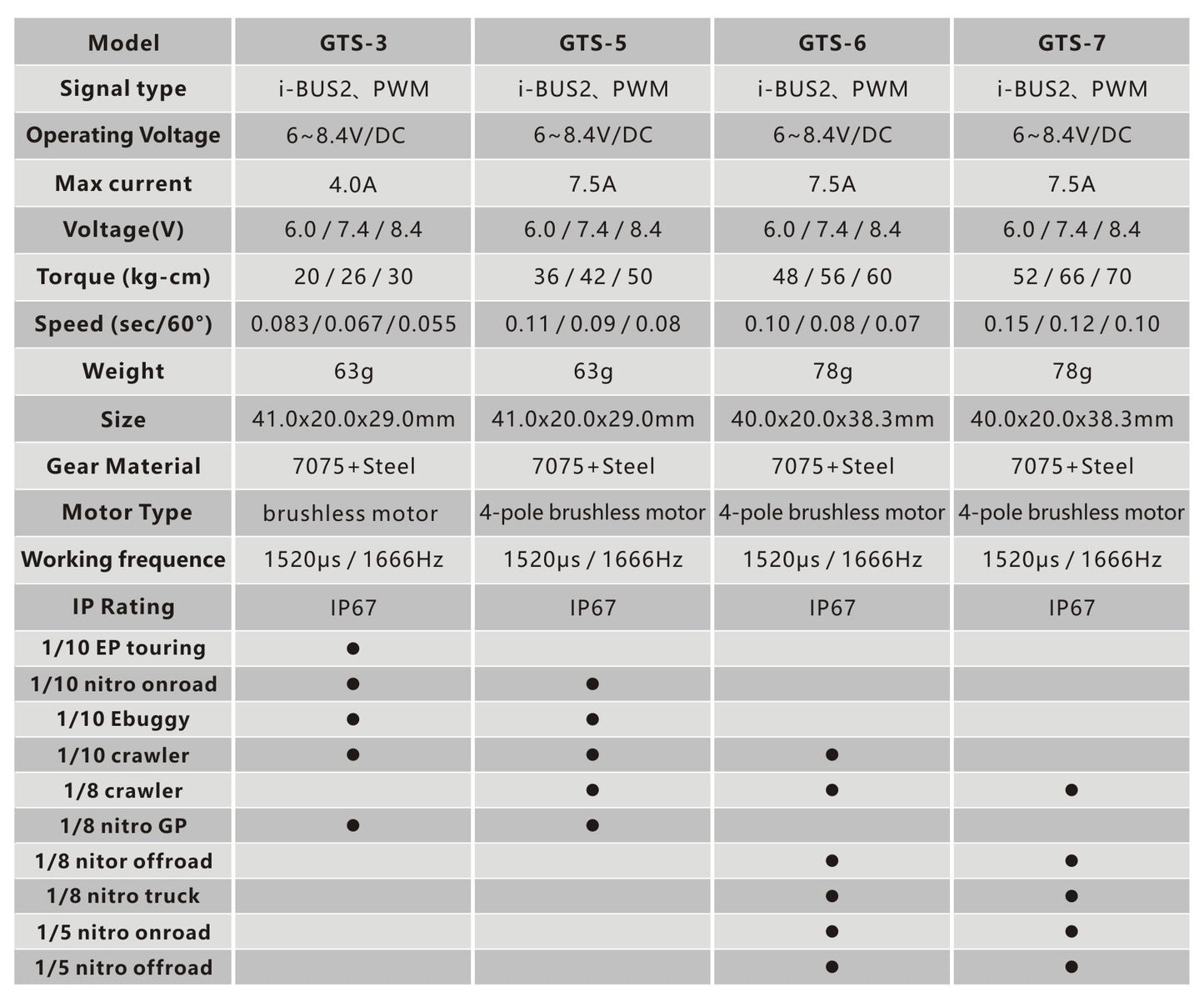

Specification:
- Torque(6.0V): 20.0 kg-cm / (277.7 oz/in)
- Torque(7.4V): 26.0 kg-cm / (361.1 oz/in)
- Torque(8.4V): 30.0 kg-cm / (416.6 oz/in)
- Speed: 0.083 sec (6.0V); 0.067 sec (7.4V); 0.055 sec (8.4V)
- Operating voltage: 6.0 - 8.4 DC Volts
- Weight: 63 g (2.22 oz)
- Bearing type: Ball Bearing x 2
- Motor type: Brushless Motor
- Gear type: 7075+Steel
- Operating temperature: from -20*C to +60*C
- Working frequency: 1520µs/1666hz
- Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
- Max current: 4.0A
