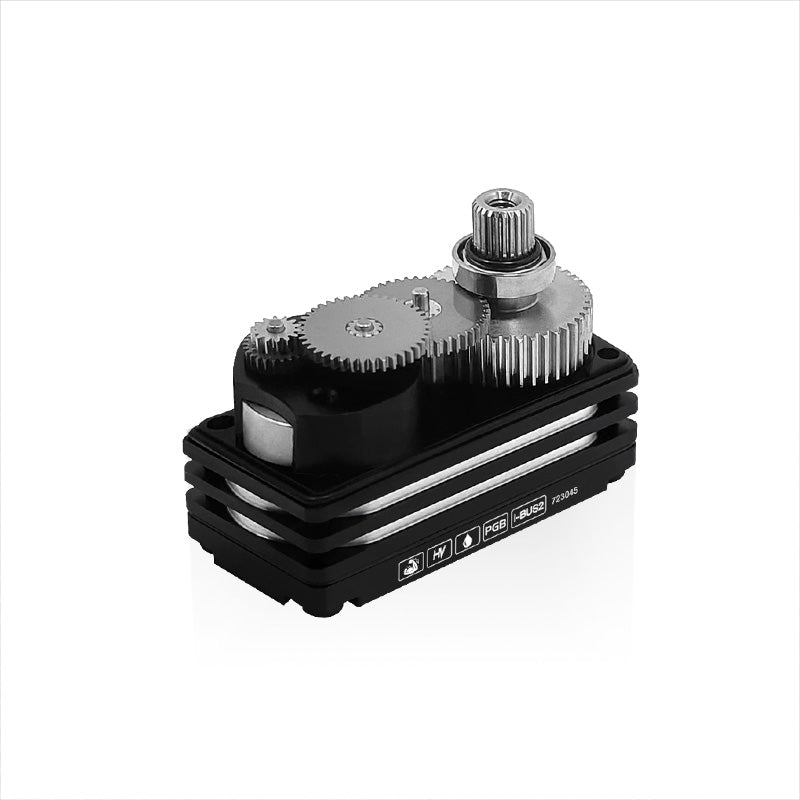

Power HD GTS-2 Super Low Profile Brushless Servo - 6cm

Power HD 2024 final artwork: 4-pole brushless super low profile servo GTS-2 !
The GTS-2 weighs only 47 grams and is 3mm shorter in height than traditional low-profile servos.
The output gear is made from TC4 titanium alloy, which is lighter than 303 steel gear and increases hardness and toughness by 50%.
This is 6cm version!
The 6cm version features reverse wire output from the bottom of the case, making the receiver placement space more abundant and ideals for 1:10 electric Touring Car.

*Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

• Noble NB4 Pro modes: NOR / SR / SFR
• Futaba modes: NOR / SR / UR
• SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63
*four-pole brushless motor
*Data monitoring function: monitor and record the voltage, temperature and signal of multiple servos for up to 1 hour, for drivers to check the data after racing.

Required servo horn: 25 teeth (not included)

Specification:

• Torque(6.0V): 15.0 kg-cm / (208.3 oz/in)
• Torque(7.4V): 18.0 kg-cm / (250.0 oz/in)
• Torque(8.4V): 23.0 kg-cm / (319.4 oz/in)
• Speed: 0.080 sec (6.0V) │ 0.073 sec (7.4V)
• Speed: 0.065 sec (8.4V)
• Operating Voltage: 6.0 ~ 8.4 DC Volts
• Stall current: 3.6A
• Weight: 47g (1.66 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type: 4-pole Brushless Motor
• Gear Type: Titanium + 7075
• Operating Temperature: -10℃~60℃
• Working frequency: 1520μs /50 - 1666hz
• Size: 41.0 x 20.0 x 23.6 mm ( 1.61 x 0.79 x 0.93 in)
