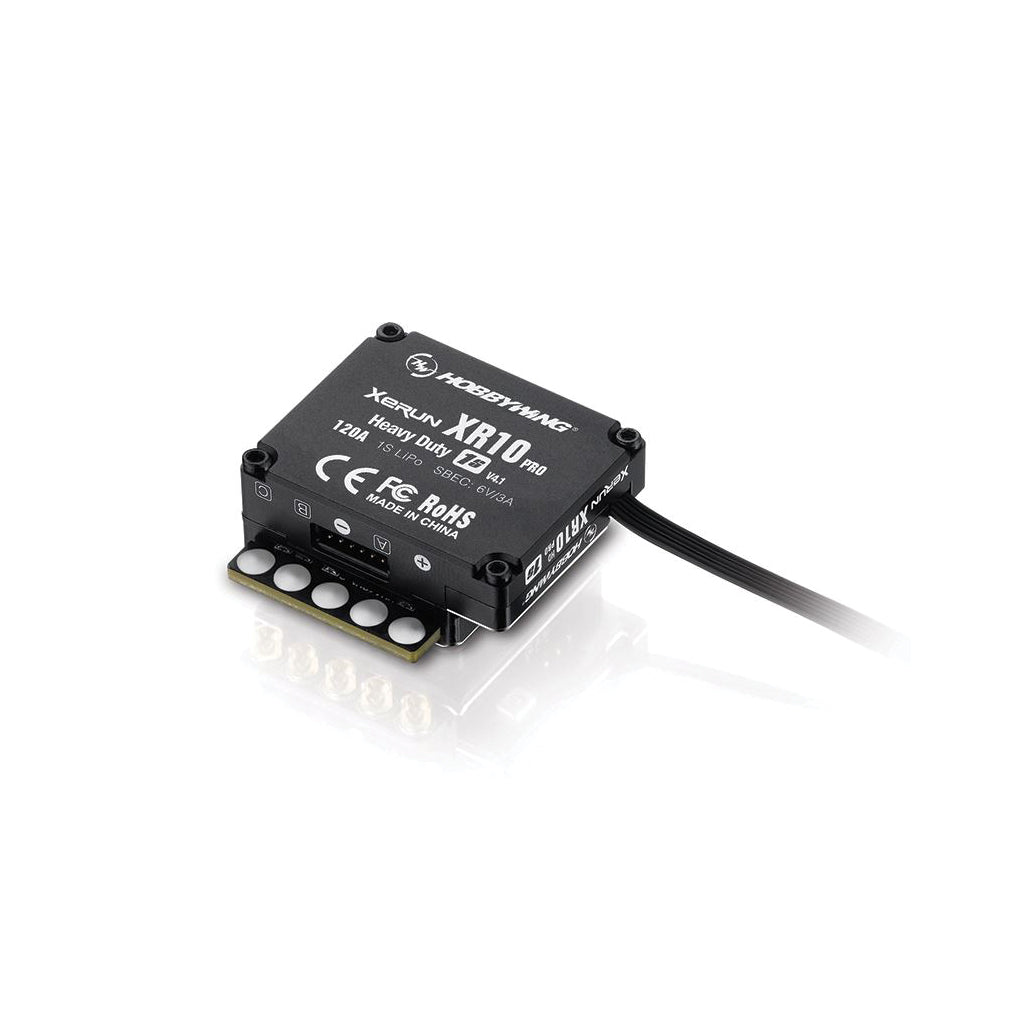

HOBBYWING XERUN XR10 Pro 1S Heavy Duty ESC Ver.4.1

The HOBBYWING XERUN XR10 Pro 1S Brushless ESC 120A for 1/12 sets a new standard for high-performance electronic speed controllers, specifically designed to meet the demands of 1/12 scale pan car racing enthusiasts. Engineered with cutting-edge technology and built for extreme racing conditions, this ESC delivers unmatched power, precision, and reliability to propel you to victory on the racetrack.
Powerful BEC with 6V and 3A, electronic on/off switch as well as small dimensions and lightweight are other advantages for the XR10Pro V4 1s controller. All parameters are easily and quickly adjustable via the separately available WiFi module or LCD programming box.

Key Features:

• Special design for 1/12^th scale top racing: reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to 1/12^th scale top touring car racing.
• High reliable heat dissipation system: Internal power board covered with copper heat conducting confluence strip which is Hobbywing’s patented technology. The strip is convenient for transferring the internal heat rapidly to an integrated shell radiator, together with a high-speed heat dissipation fan, which build a high reliability heat dissipation system, to ensure the ESC is always in the best state of heat dissipation.
• Super BEC: internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.
• Built-in Electronic Switch & Capacitor Module: built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design) and capacitor module save space and make the wiring simple and neat.
• Programming/Upgrading/Data reading wirelessly: with Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
• Adjustable Throttle & Brake PWM frequencies: independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
• Separate Programming/Fan port: the separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.
• Innovative data-logging function:  this ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box to analyse.

 Specification:

• Type:
  Scale: 1/12^th
  Brushless
  Sensored
  Waterproof: No

•  Relevant parameters:
  Cont./Peak Current: 120A/830A
  Input Voltage: 1S LiPo / 3-4 Cell NiMH
  BEC Output voltage: 6V
  BEC current: 3A
• Size and weight:
  Width: 31.0mm
  Length: 37.5mm
  Height: 15.9mm
  Weight: 46.7g
• ESC Programing via:
  SET Button on ESC – Not supported
  LED Program Box – Not supported
  LCD Program Box – Supported
  WiFi Module – Supported
  Programming Port - Separate
• Applications:
  Applications: SL BL Motors / SD BL Motors
  Vehicles: 1/12^th Touring Cars
  T-count limit 1sLiPo  ≥ 3.0T (ESC in blinky mode)
