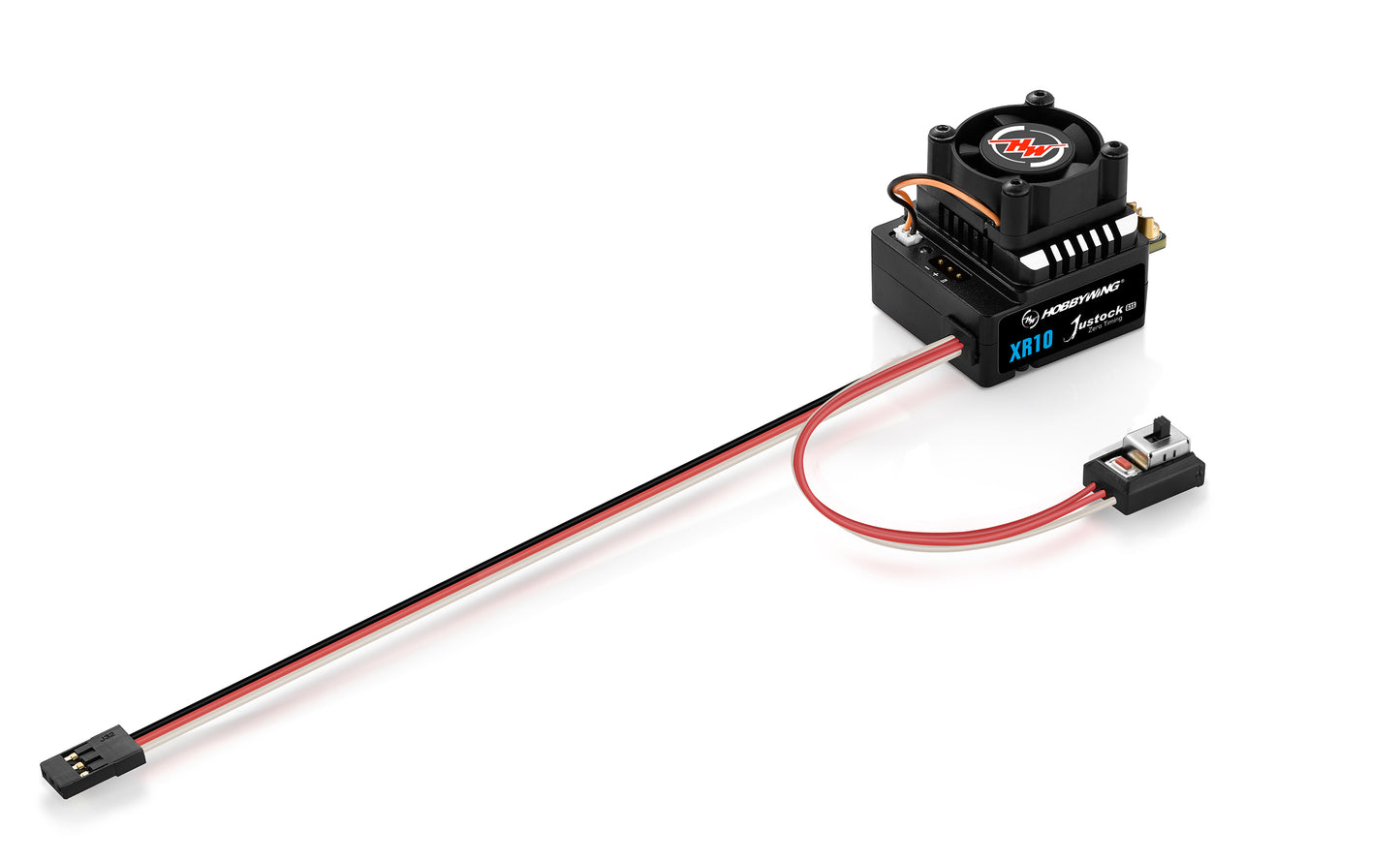

HOBBYWING XERUN XR10 Justock G3S Brushless ESC 60A Zero Boost

The new HOBBYWING XERUN XR10 Justock G3S Brushless ESC 60A Zero Boost is a state-of-the-art electronic speed controller (ESC) designed specifically for zero timing and no boost races around the world. Used in stock / spec classes to prevent any unfair advantage based on ESC settings.

The ESC offers more precise control and powerful performance and is suitable for 1:10 on road and off road.

 Key Features ESC:

• Built-in polarity protection. One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, incidentally reversing the terminals. The XR10 Justock is integrated using MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor). If the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system.
• Built-in capacitor module. The built-in capacitor module eliminates the need for external capacitors and does not require additional space.
• Built-in BEC supporting high-voltage steering gear. The ESC has a built-in BEC (Battery Eliminator Circuit) which can support a maximum output current of up to 8A and the output voltage at either 6V or 7.4V. This will ensure a stable and consistent voltage supply to power the receiver and high-torque servos, eliminating the need for an external BEC.
• Fan intelligent start and stop function. When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on. The intelligent start and stop function of the fan not only reduces noise, saves power,but also ensures that the ESC works in a good temperature range.
• RPM speed limit function. The ESC is able to support up to 79 different speed selections (10000-88000RPM) to meet the needs and demands of various competitions in the world. It can be programmed through using the latest OTA Bluetooth module or the traditional 3in1 program box.
• Multiple Protection Features. The ESC is equipped with various protection features, including low-voltage cutoff protection, overheat protection, and throttle signal loss protection, ensuring the longevity of your electronics and enhancing safety.
• Built-in data logging function. The ESC has a built-in data recording function. Making it easy to obtain the operating status. The data includes the
  • Minimum voltage
  • Maximum current
  • Maximum RPM
  • Maximum ESC temperature
  • Maximum motor temperature
• Wireless connection for data recording and analysis. After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions.
• Freewheeling feature. With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off and it has better controllability around the corners.



 Specification:

• Type:
  Scale: 1/10^th
  Brushless
  Sensored
  Waterproof: No
• Relevant parameters:
  /Peak Current: 60A/380A
  Input Voltage: 2S LiPo
  BEC Output voltage: 6 - 7.4V
  BEC current: 4A
  Size and weight:
  Width: 33.9mm
  Length: 40.9mm
  Height:32.1mm
  Weight: 75.4g
• Wires & Connectors
  Input Wires: Black-14AWG-200mm*1 Red-14AWG-200mm*1
  Output Wires: Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
  Input Connectors: no
  Output Connectors: no
• Fan:
  Size: 25x25x10mm
  Output Wires: 5, 7.4V
  Input Connectors: powered by BEC
• ESC Programing via:
  SET Button on ESC – Not supported
  LED Program Box – Not supported
  LCD G2 Program Box – Supported
  LCD Program Box – Supported
  OTA Programmer – Supported
  Programming Port - Separate
• Applications:
  Applications: SL BL Motors / SD BL Motors
  Vehicles: 1/10^th on road and off road club competition and training
  KV Rating / T Count  ≥10.5T 3650 Motor
