Hobbywing Xerun V10 G4R (2-3s) Sensored Brushless Motor 13.5T

Hobbywing Xerun V10 G4R (2-3s) Sensored Brushless Motor 13.5T

SKU:HW30401749

Regular price €119.90 EUR
Regular price Sale price €119.90 EUR
Sale Out of stock
Tax included. Shipping calculated at checkout.

Customers will always checkout in the currency of the store. (EUR)

Hobbywing Xerun V10 G4R (2-3s) Sensored Brushless Motor 13.5T Stock / Spec.
The Xerun V10 G4R motor from Hobbywing ensures outstanding performance on the track. With up to 7% more speed and 9% more power, it clearly stands out from comparable motors in the industry. Even compared to its G4 predecessor, the improvement in performance is still 4%, offering an excitingly powerful driving experience in every 1/10 stock race.

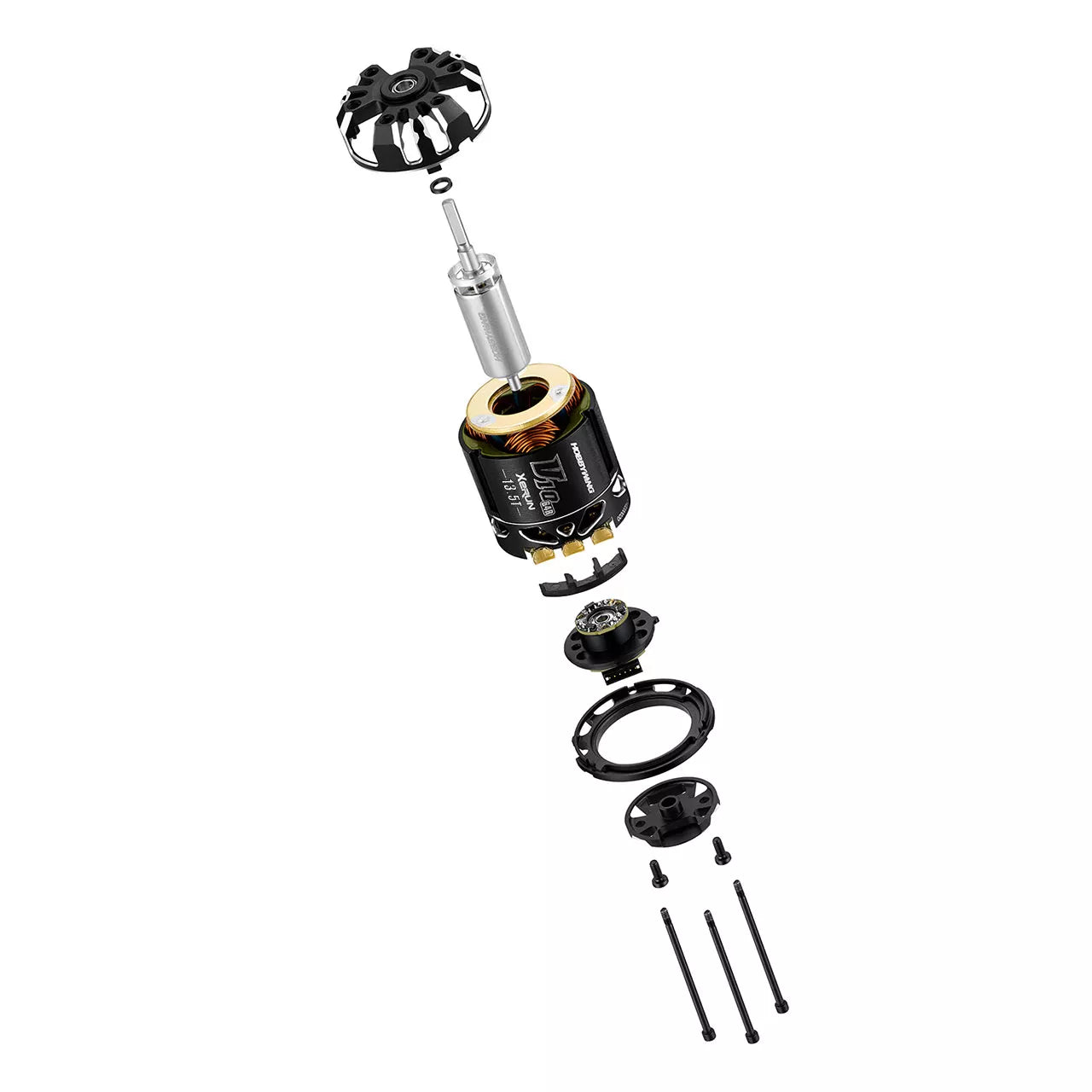

Thanks to the exposed core and the completely new rotor, the G4R motor manages to dissipate heat through optimized airflow. For this purpose, the outer diameter and thus the total surface area of the G4 predecessor was increased by more than a quarter in order to effectively cool the motor and quickly dissipate the heat to the outside. And even if it does get a little hotter: The wiring inside the engine, for example, can withstand temperatures of up to 220°C. And the newly installed nylon shims in the motor also reduce the noise level and are particularly wear-resistant components.
Install the motor according to your own requirements. For example, there are two sensor connections to make the cable routing as space-saving as possible. And if personalization is even more important to you, you can use the optional rotor to make the motor ready for particularly demanding competitions.

Key Features:

  • 9% more power and 7% more speed than comparable motors
  • 3% less internal resistance than the G4, but high efficiency
  • Quiet motor with long service life
  • First-class, linear power delivery
  • Weight and cooling-optimized housing
  • High-quality components
  • Finely adjustable mechanical timing
  • Easy to dismantle for maintenance

Specification:

  • Type:
    Brushless
    Sensored
    Pole count: 2
    Applications: 1/10th stock class racing
  • Size and weight:
    Motor diameter: Ø 35.8mm
    Motor length: 51.3mm
    Rotor - shaft diameter: Ø 3.17mm
    Shaft length: 13.9mm
    Motor weight: 152g
    Front Bearing: D9*D4*t4
    Rear Bearing: D8*D3*t4

  • Relevant parameters:
    KV Rating: 4100 RPM/V
    No load current: 5.4 A
    Max. peak current: 70.7 A
    Max. power output: 297 W
    Mechanical timing: 20-60 Degrees (stepless adjustable)

    Number of LiPo cells: 1-3S

Important notes:

  • The KV rate of the motors is measured without the motor having any resistance. The motor timing is left at the default setting and the ESC is also set in ZERO timing mode. The default motor timing for motors from 3.5T to 8.5T is 30 degrees, for stock motors from 10.5T to 25.5T it is 40 degrees!
  • Always protect the motor from overheating - excessive temperatures will affect motor performance. Always let the motor cool down before using it again!
  • Always use ESC that can handle the high currents of the motors and batteries. This guarantees the best performance and maximum life of the electronic components
