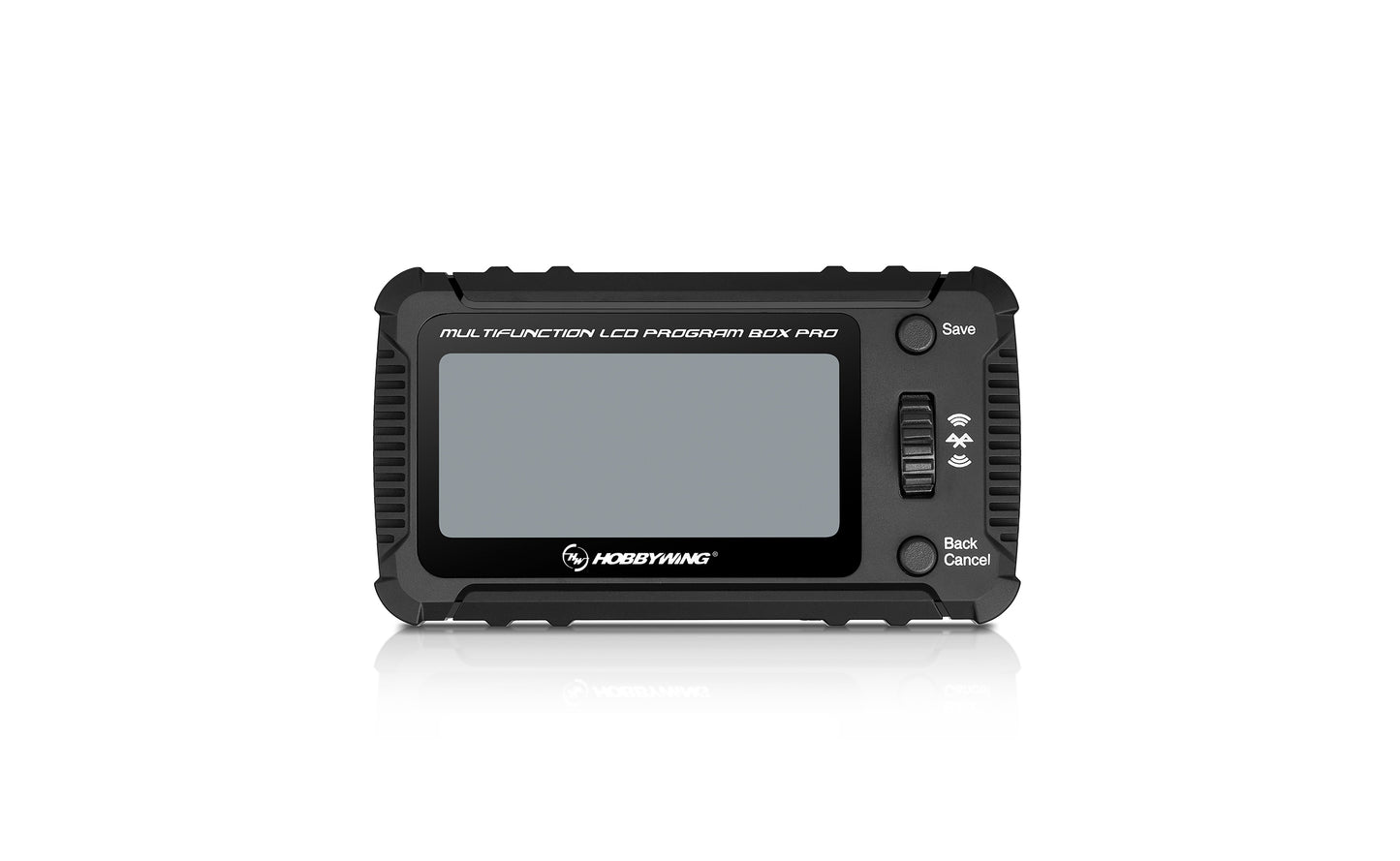

HOBBYWING LCD PROGRAM BOX PRO

This is new LCD Program Box Pro  from Hobbywing. A new single Roller interface makes navigating a speed controller’s setting easier than ever.  As an independent parameter adjustment device, the Program Box Pro allows you to directly use the built-in LCD screen to display, set, and share ESC parameters.  Connect the ESC to a computer using a USB adapter and use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.  With the OTA Bluetooth module to establish wireless connection with your smartphone, you can use the mobile APP to set ESC parameters, upgrade firmware, and read data.

 Main features:

• As an independent parameter adjustment device, directly use the built-in LCD screen to display, set, and share ESC parameters (import).
• Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to upgrade the ESC firmware and set parameters.
• The OTA Bluetooth module: using the mobile APP to set ESC parameters, upgrade firmware, and read data.
• Detect the overall voltage of the lithium battery and the individual voltage of each cell.

 The scope of application can also be understood by previous ESCs that the old LCD G2 program box and OTA Bluetooth module supported.

 Note: Please refer to the programming settings of your controller to find out which values can be set.

 Specification:

• Input Voltage DC: 5.0-12.6V (If the ESC does not have a built-in BEC, a separate battery must be used)
• Display: 2.8’’ LCD support 20 levels brightness adjustment
• Ports: USB-C, ESC, Power
• Compatibility for battery check: XH, EH, HP/PQ
• Dimensions: 105.6x59x24.4mm (LxWxH)
• Weight: 85g
• Interface – TYPE-C USB，ESC interface (Futaba plug),  Power supply interface (Futaba plug)
