Elceram Oxide 1/10 Competition Brushless ESC
OXIDE 1/10 is a new generation electronic speed controller for BLDC motors optimised for Stock / Spec / Open Stock racing. Using Advanced Cooling Technology based on a completely flat, finless and lightweight Aluminium Oxide Ceramic cooler. Heat transfer and performance is more than sufficient for Stock, Expert Stock, Drift and also Modified with motors of 6T or more. The advantage is that the dimensions and weight are optimised and lower than NITRIDE (approx. 20%).
Programmable parameters and functions:
Revolutionary simple Rx calibration.
Real time monitoring: battery voltage, ESC and motor temperatures.
Easy programming: throttle, brake, boost and turbo timing, Hall angle and many other functions.
Race data logging, temperature and other curves, histograms and more.
Adjustable maintenance reminder for easy checking.
No programming interface required.
Key Features:

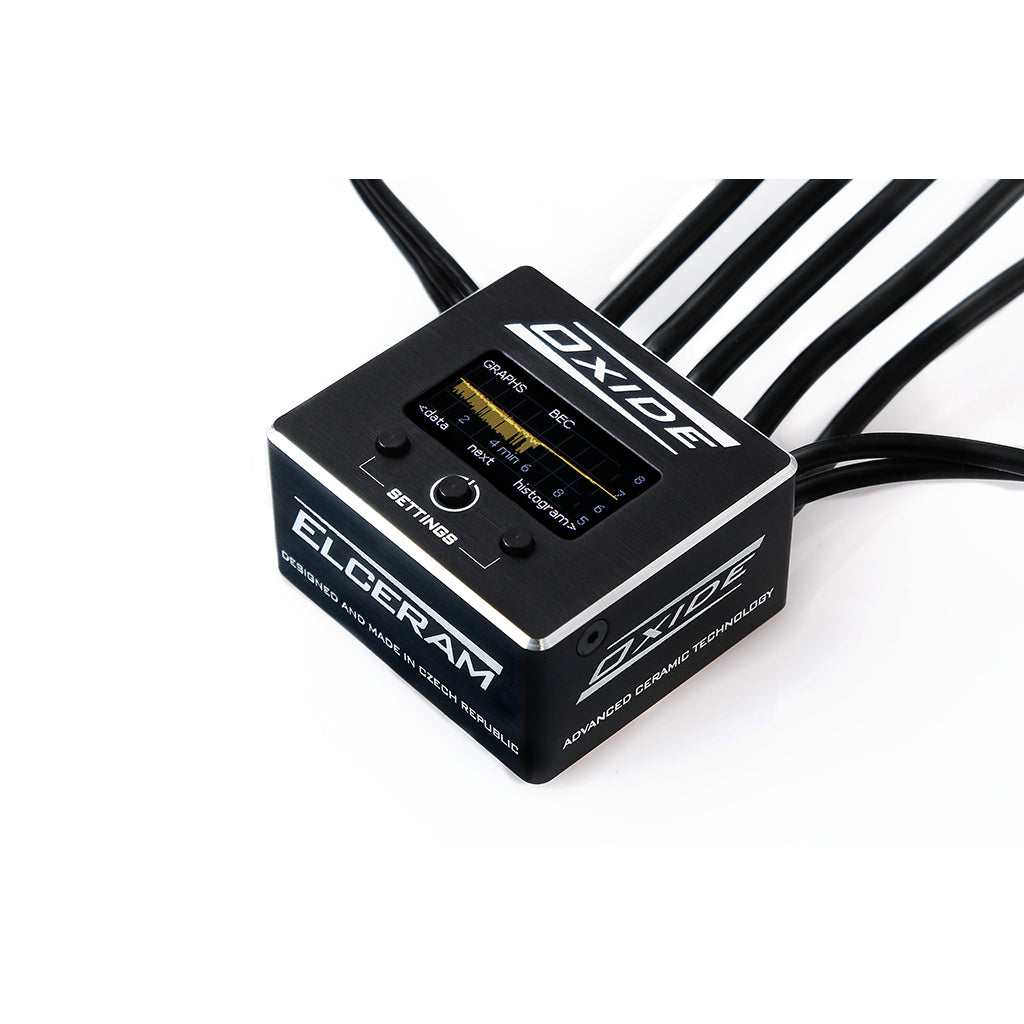

TFT LCD colour display - OXIDE comes with a breakthrough in RC motor control - an LCD colour display with a resolution of 160 x 80 pixels. This allows you to set all the parameters and check all the data directly on your ESC, without the need for a programming card or a mobile application. Everything you need is inside your ESC. It is really easy to use - 3 buttons allow you to quickly set everything you need and a single view is enough to check all the parameters necessary for the race. Simple. Fast. Accurate.
Easy Check and Set - The display gives you an overview of all the important data and events - before the race, during the race and after the race. You can change your settings quickly and get instant feedback, without the delay of connecting an external control interface.
Advanced Cooling Technology - based on a compact Aluminium Oxide cooler, specially developed for OXIDE. OXIDE is a light and compact version of the ESC, exactly what you need not only for Stock racing. The centre of gravity is ultra low for even better stability of your car. MOSFETs transistors are cooled directly without any additional thermal resistance layer! During production, Elceram used very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by power systems designed and manufactured by Elceram.

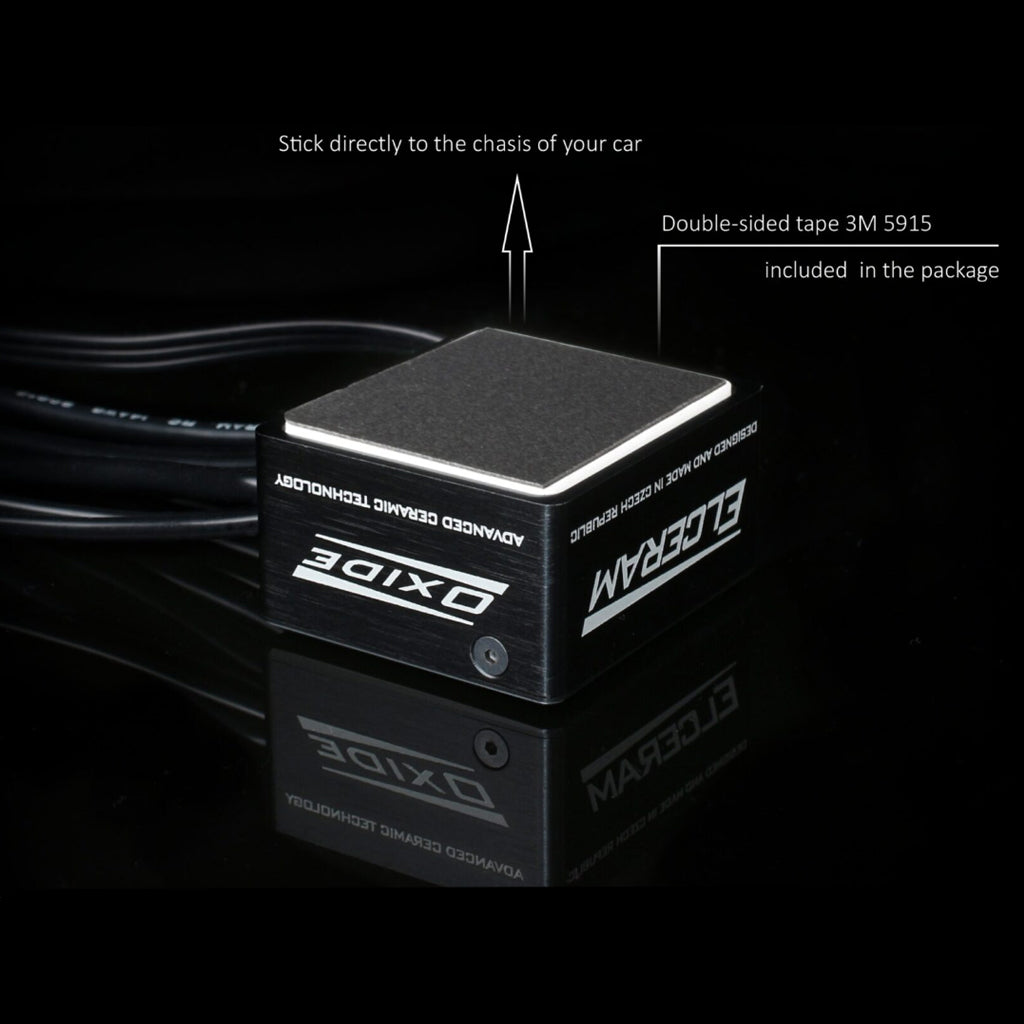

Easy installation - installation of OXIDE is quick and easy - using double-sided tape included in the package. In addition, the cover of ESC with display and buttons is able to be changed simply in case of any accident.
Specification:
Type: Scale: 1/10th Brushless Sensored Waterproof: NO
Size and weight: Width: 34.3mm Length: 38.3mm Height: 20.0mm Weight: 45 g without wires / 75 g with wires AWG14 - 180 mm.
Applications: Applications: Brushless DC Motors 6.0T up Vehicles: 1/10th Touring and Buggy cars; 1/10th drift cars; F1 Zero Timing (Blinky Mode) supported.
