ELCERAM NITRIDE 1/8 Electronic Speed Controller

• Revolutionary simple Rx calibration.
• Real time monitoring: battery voltage, ESC and motor temperatures, motor diagnostics and more.
• Revolutionary battery current and discharge monitoring.
• Pre-race diagnostics: motor temperature, sensor cable, bad motor, battery, BEC voltage and more.
• Easy programming: throttle, brake, boost and turbo timing, Hall angle and many other functions.
• Race data logging, temperature and other curves, histograms and more. Data will be saved after turn off the ESC.
• Adjustable maintenance reminder for easy checking.
• No programming interface required.
• Firmware update function.

Key Features:

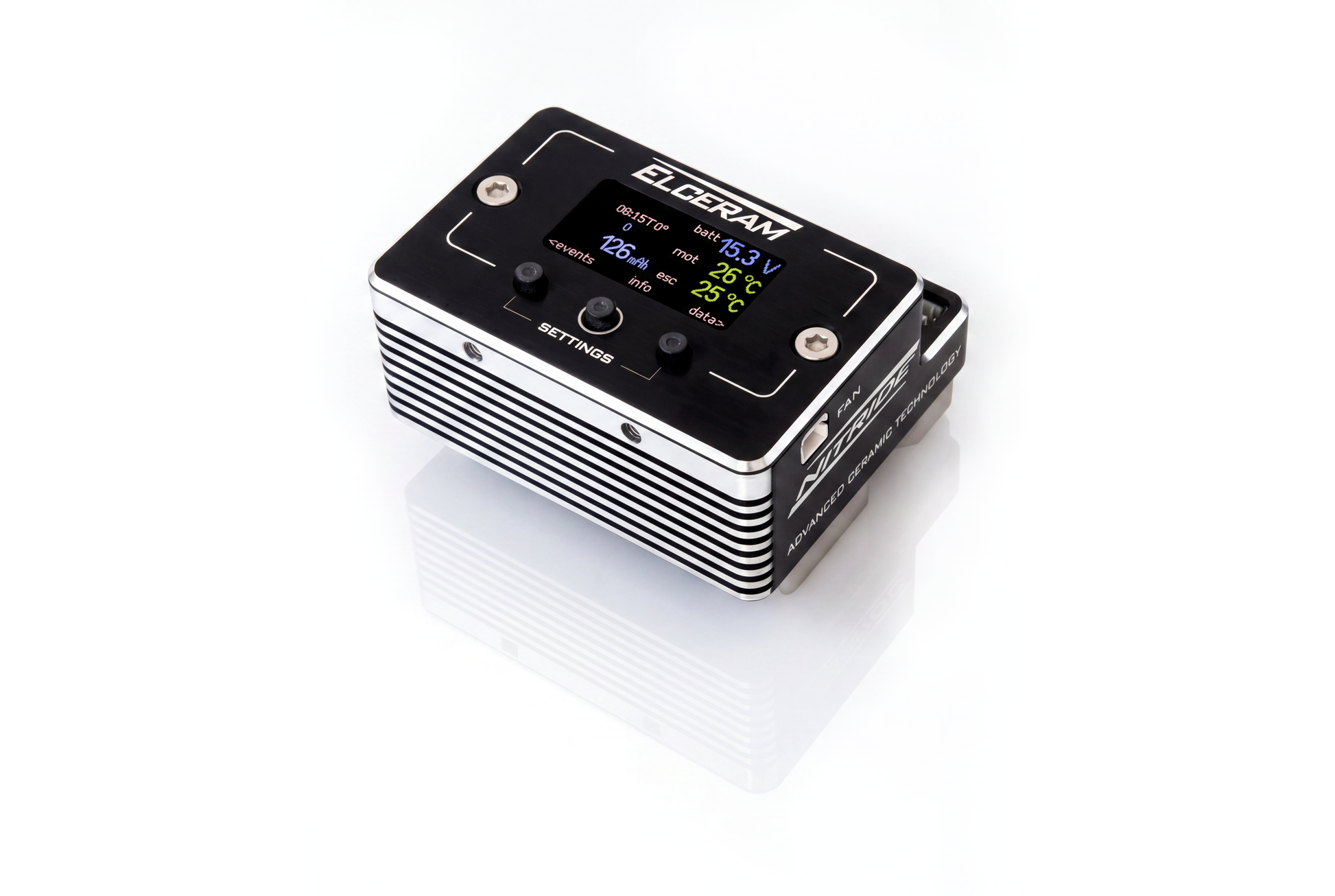

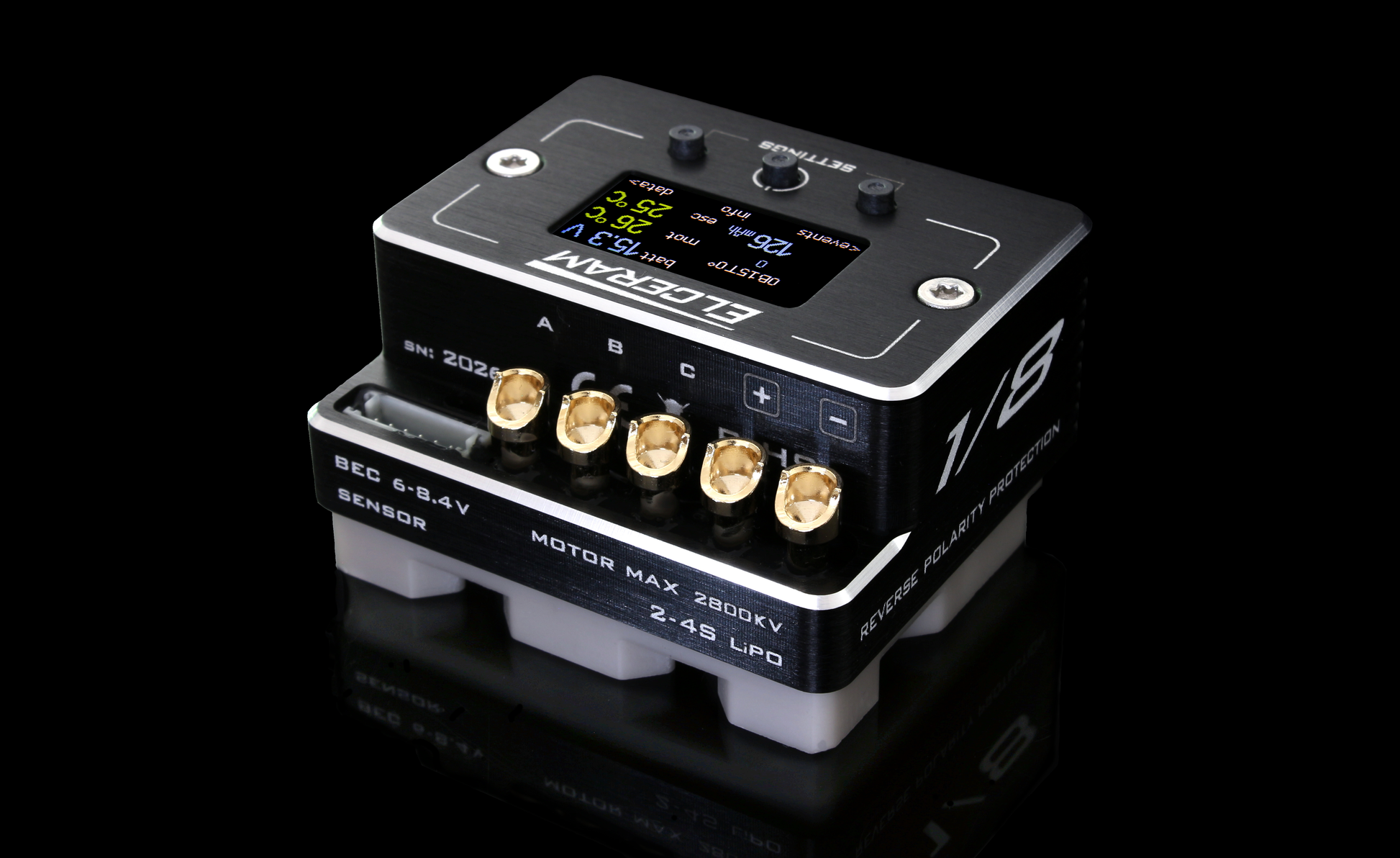

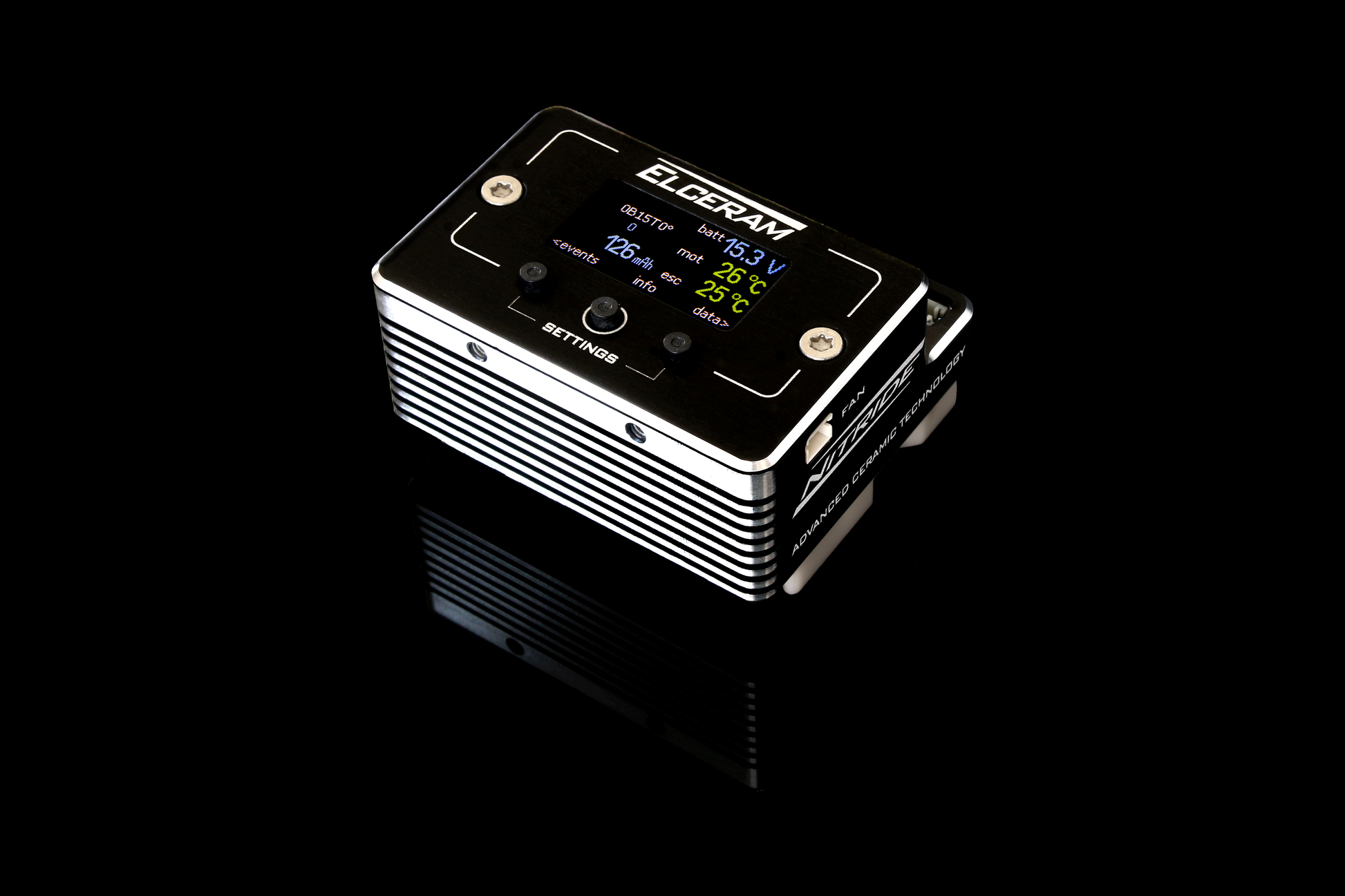

• TFT LCD colour display, matte finish - LCD colour display with a resolution of 160 x 80 pixels allows you to set all the parameters and check all the data directly on your ESC, without the need for a programming card or a mobile application. Everything you need is inside your ESC.
  It is really easy to use - 3 buttons allow you to quickly set everything you need and a single view is enough to check all the parameters necessary for the race. Simple. Fast. Accurate.
• Easy Check and Set - The display gives you an overview of all the important data and events - before the race, during the race and after the race. You can change your settings quickly and get instant feedback, without the delay of connecting an external control interface.

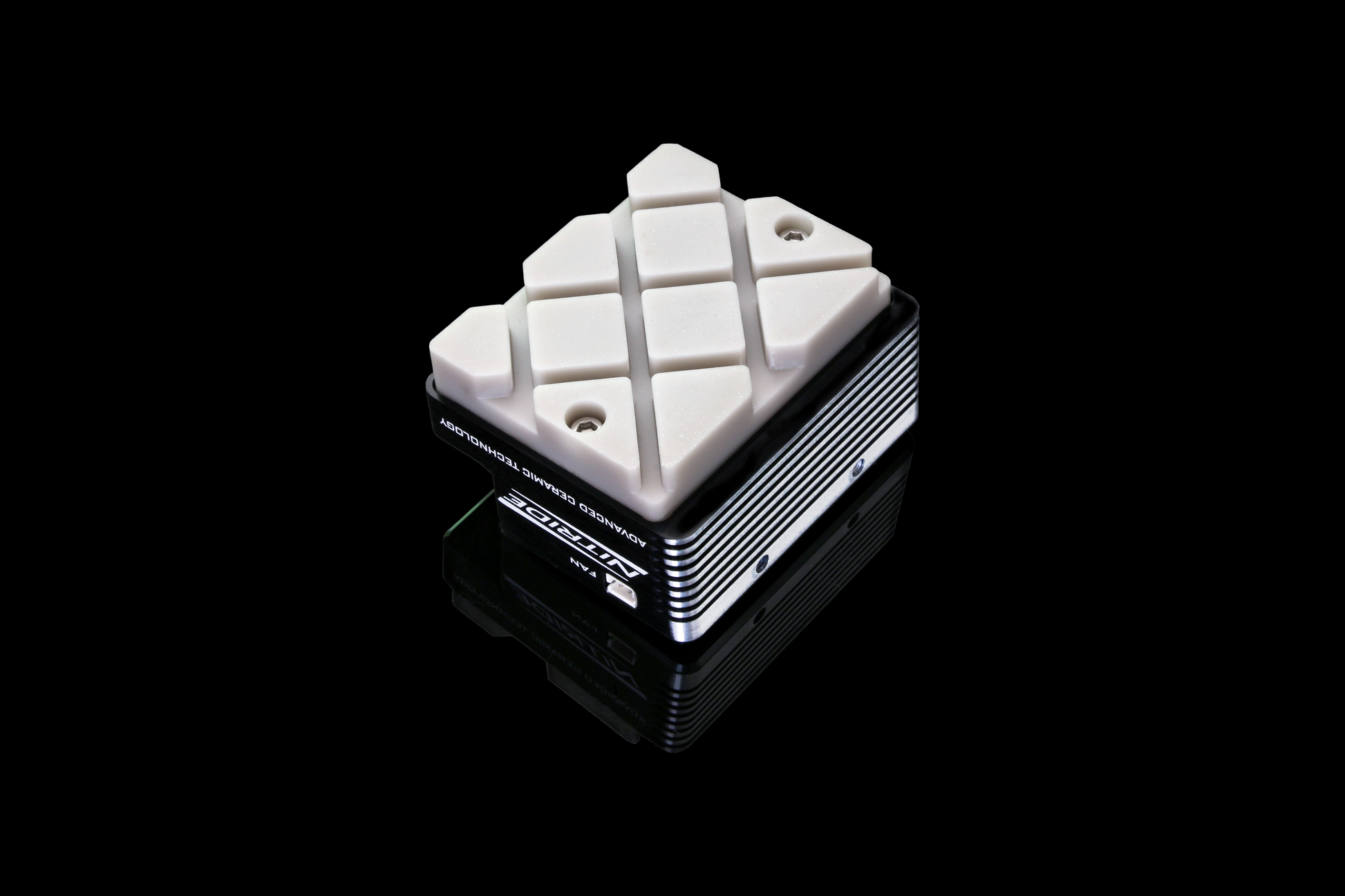

• Advanced Cooling Technology - NITRIDE Featured Advanced cooling technology based on Aluminium NITRIDE heatsink, specially developed for NITRIDE, gives the ESC excellent thermal conductivity and long-term resistance to high temperatures and loads.
  MOSFETs transistors are cooled directly without any additional thermal resistance layer!
  During production, ELCERAM used very thick layers of special materials such as silver and copper for very low internal resistance and the latest technologies inspired by advanced power systems designed and manufactured by ELCERAM.
• For even better cooling, NITRIDE 1/8 features additional aluminium cooling fins. If it is needed in special conditions, NITRIDE 1/8 is equipped with pre-drilled mounting holes for fan installation and a connector for Intelligent fan 25 mm.
• Reverse polarity protection.
• Intelligent algorithms for ESC protection.
• Easy installation - installation of NITRIDE 1/8 is quick and easy – it can be sticked to the chassis using double-sided tape (included in the package) or screwed directly onto a suitable place, ideally with good thermal conductivity.
• In addition, the cover of ESC with display and buttons is able to be changed simply in case of any accident.

 Specification:

• Type:
  Scale: 1/8th Onroad and Offroad
  Brushless
  Sensored
• Waterproof: No
• Polarity protection: Yes
• Relevant parameters:
  Cont./Peak Current: 220A/1500A
  Input Voltage: 2S-4S LiPo
  BEC Output adjustable voltage: 6.0 - 8.4V
  BEC current Cont. / Peak: 6A/15A
  Fan output adjustable voltage: 6.0 – 8.4 V
  Fun output current Cont.: 3 A
• Size and weight:
  Width: 43.0 mm
  Length: 50.00 mm
  Height: 28.0 mm
  Weight: 112 g without wires

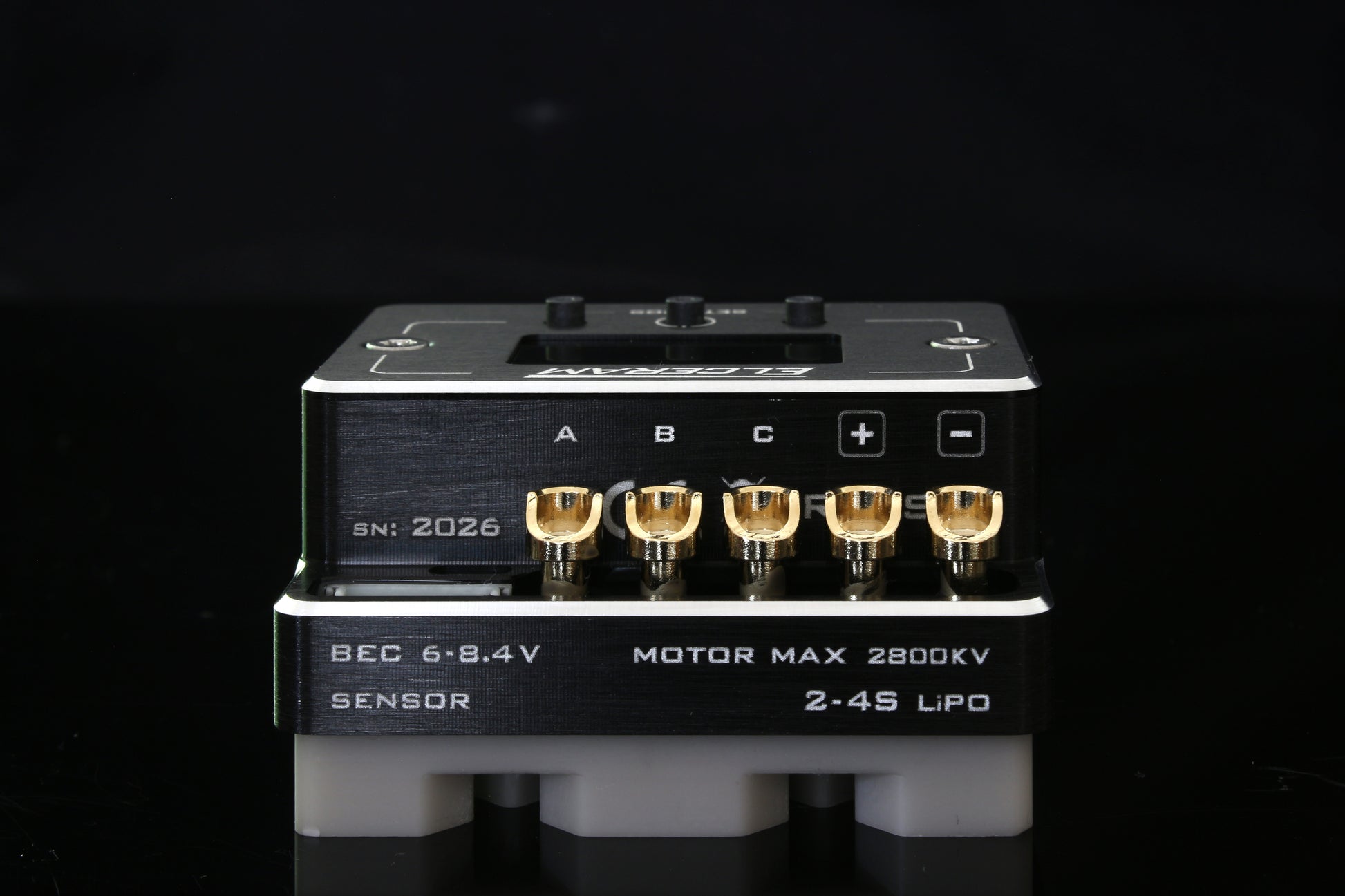

  BEC cable length: 300 mm, grey stripe is minus pole

• Applications:
  Sensored Brushless DC Motors up to 2800 kV
  Vehicles: 1/8 Offroad, 1/8 Onrodad
• Zero Timing (Blinky Mode) supported.
• External capacitors needed (included in package)

Package Contents:

• NITRIDE 1/8 ESC
• Wires AWG10
• External capacitors 2x
• ELCERAM fan 25mm
• Double-sided tapes
• ELCERAM stickers
